Pad Mount Substation
We design and manufacture medium and low voltage power pad mount substation — from prefabricated substations and modular transformers to cable junction boxes and dedicated step-up transformers for wind and solar power — covering 30 kVA to 2,500 kVA across voltage levels up to 35 kV, with full customization in voltage, capacity, and enclosure protection.
Backed by 30+ years of experience, 18+ international certifications, and a track record of 2,400+ projects across 80+ countries, our pad mount substation is trusted for safe, reliable, and maintenance-free operation in urban infrastructure, industrial facilities, and renewable energy installations worldwide.
Power Distribution Solutions
Type: Transformer, Substation and Distribution
Application: Indoor, Outdoor, Underground
Configuration: Fully Customization
Access Top Quality Pad Mount Substation Solutions to Elevate Your Power Projects
Reliable Pad Mount Substation For Sale

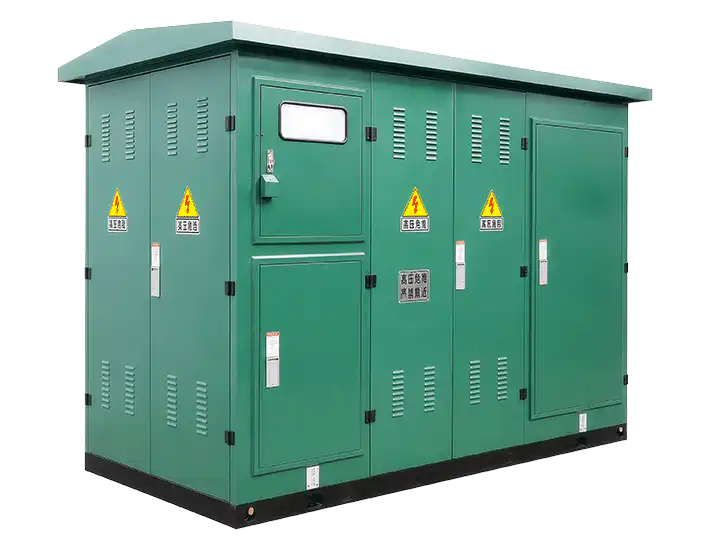

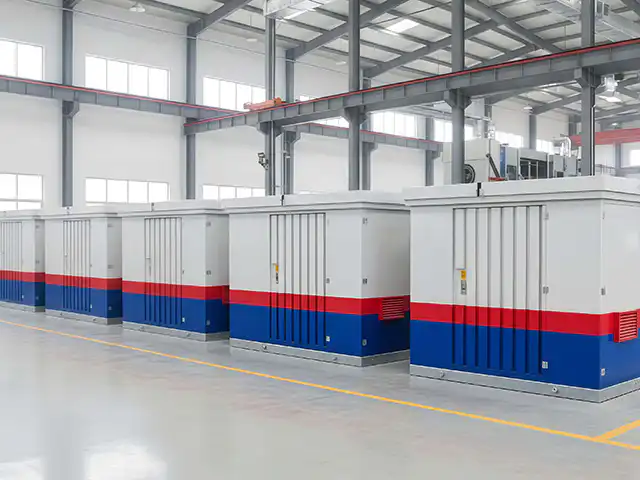

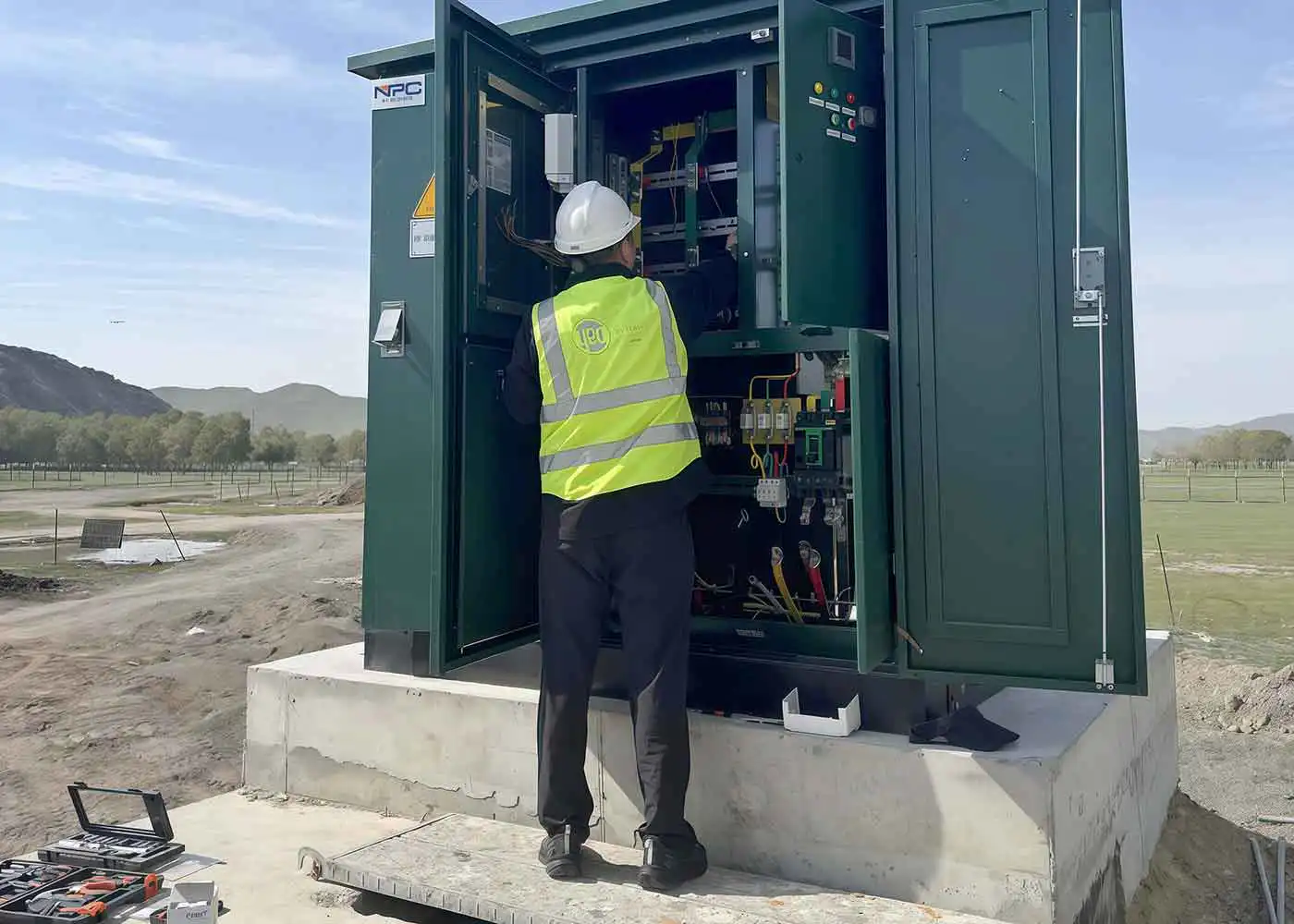

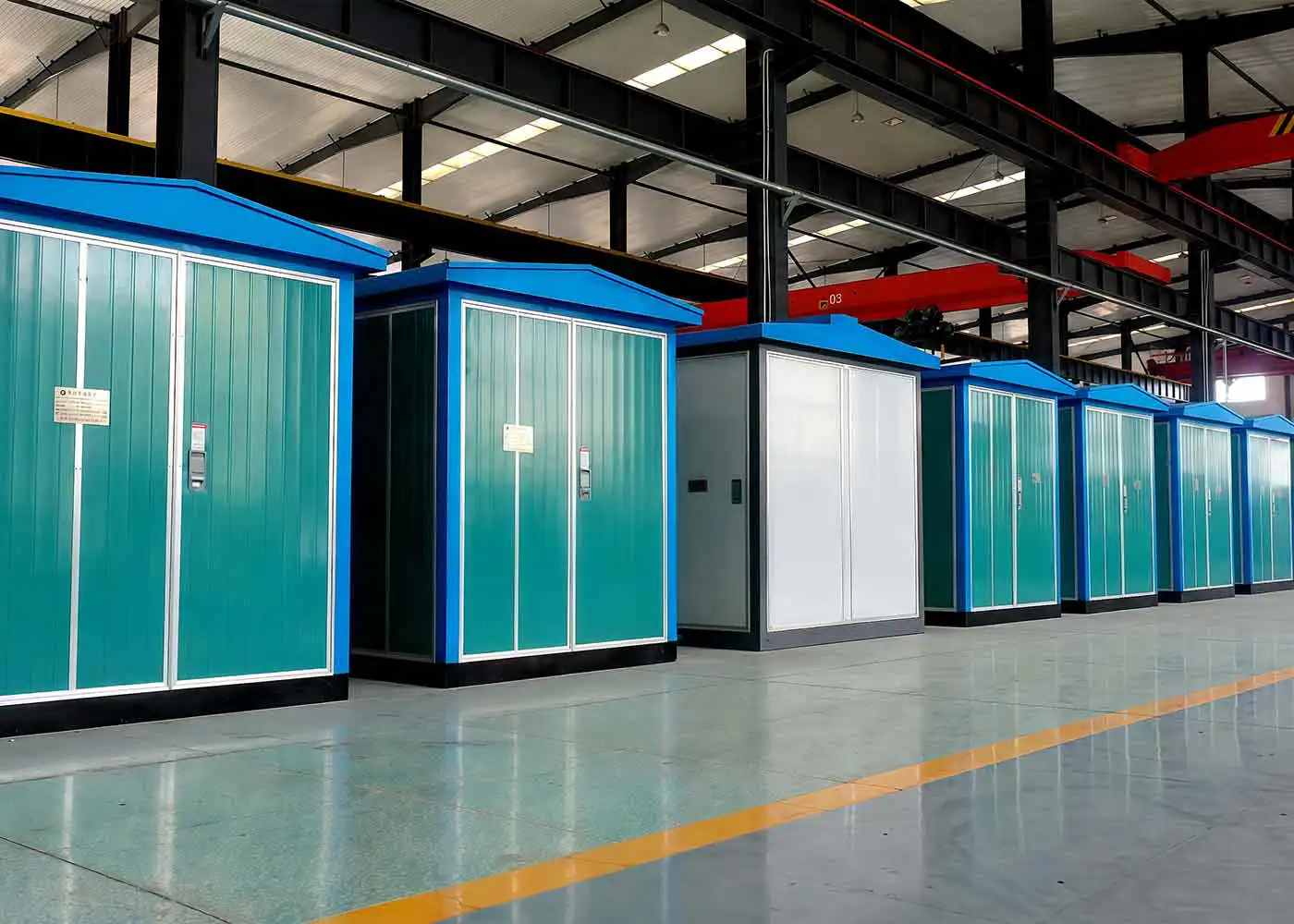

YBW Series Prefabricated Substation
For tight spaces and quick installs, Unicore YBW series fabricated substation is the perfect fit. It brings high-voltage equipment, transformer, and low-voltage components together — taking up just 1/10 of the footprint of a conventional substation, without compromising on performance or reliability.
Compact & Portable
Low Noise & Energy-Efficient
Ring-Network Compatible
Fast Deployment
Easy Maintenance

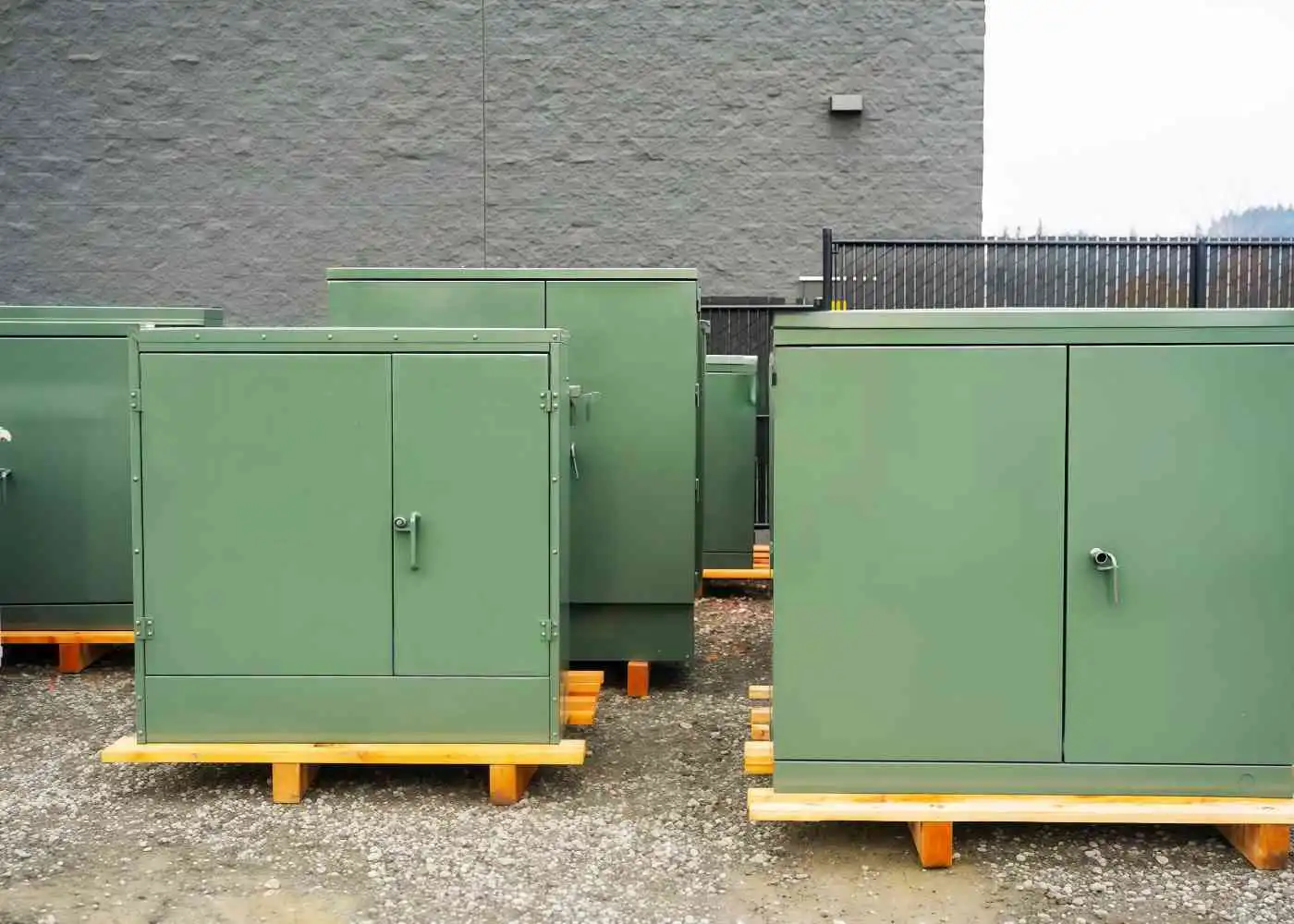

ZGS Series Modular Transformer
For residential communities, commercial venues, and industrial sites that demand consistent, trouble-free power, the ZGS keeps things simple. Everything is sealed in one oil-insulated tank — no separate components, no routine maintenance, just reliable distribution day after day.
Fully Sealed Oil-Insulated
Low Loss & Low Noise
High Short-Circuit Withstand
Maintenance-Free
Residential & Industrial Use

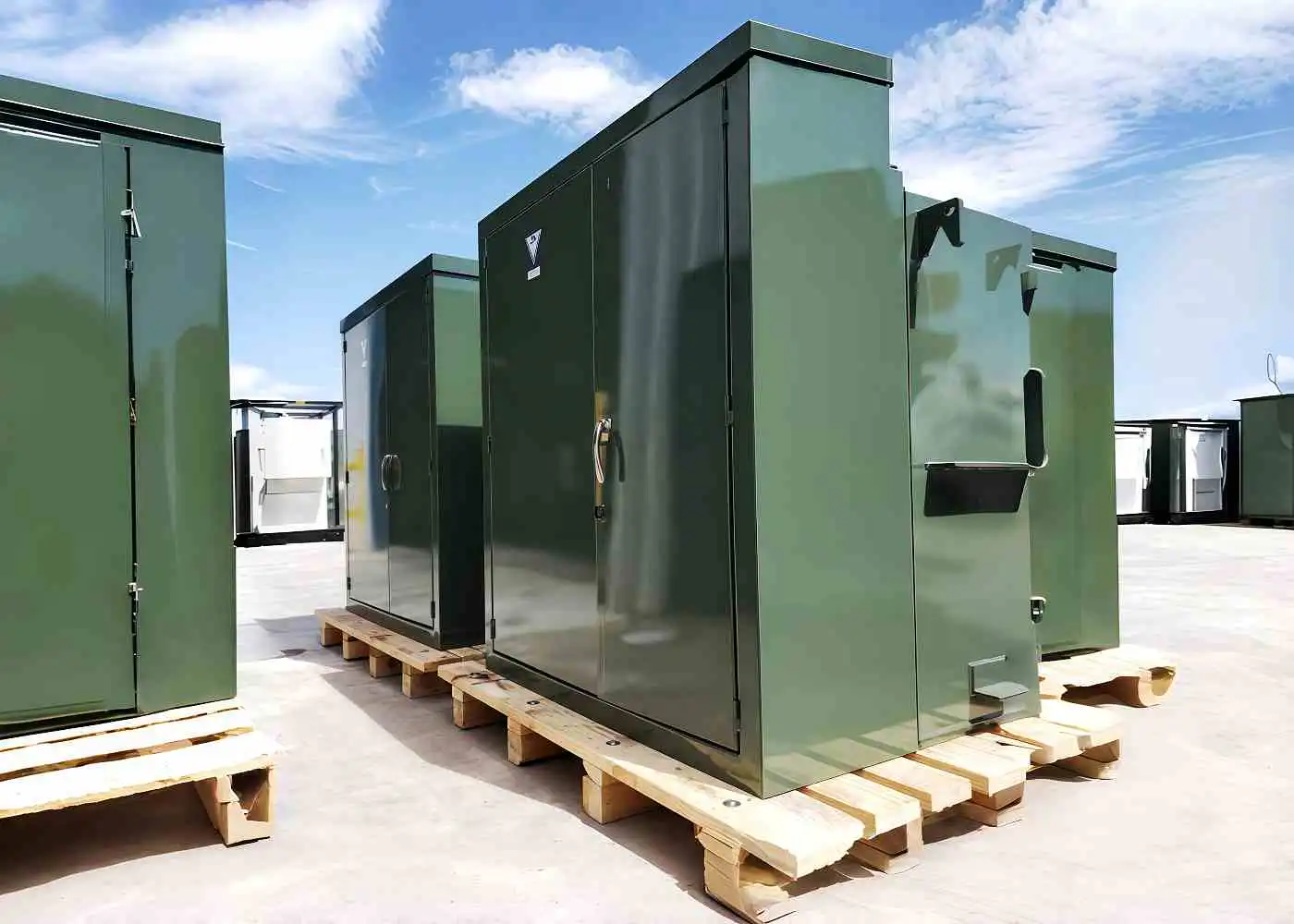

DFW Series Modular Transformer
Whether installed indoors, outdoors, or underground, the DFW makes cable network connections fast and secure. With three configuration options and prefabricated connectors, it adapts to virtually any site requirement — fully sealed, fully waterproof, and built to last.
3 Configuration Options
Fully Sealed & Waterproof
Indoor/ Outdoor/ Underground
Maintenance-Free
Wide Connector Range

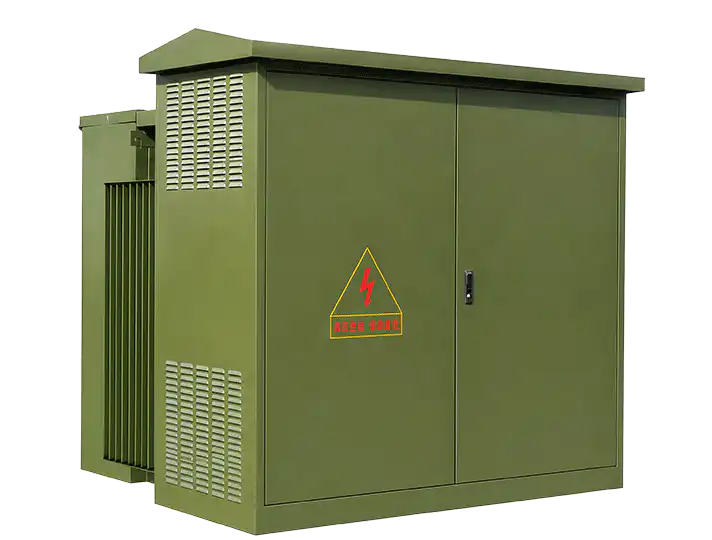

ZGS13 Series Step-Up Transformer
Built for the real demands of wind and solar farms, the ZGS13 handles the critical first stage of power transmission — stepping up generator output from 270V–1,140V to 10kV or 35kV for grid delivery. Compact, fast to install, and designed to perform reliably in tough outdoor conditions.
Input: 270V-1,140V
Output: 10kV or 35kV
Wind & Solar Dedicated
Compact & Quick Install
Maintenance-Free

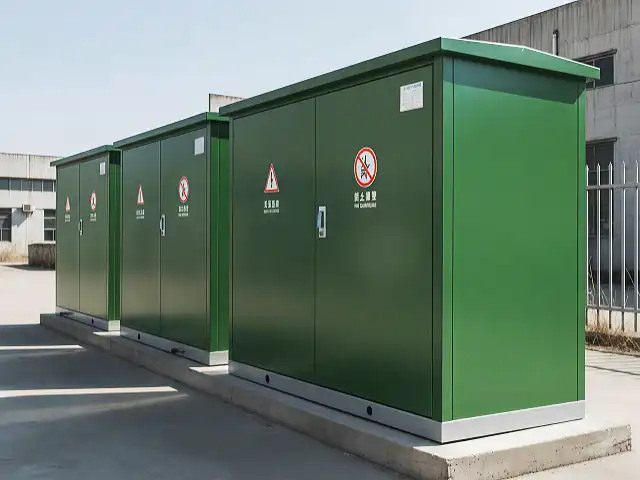

YBH Series Chinese-Style Compact Substation
The YBH series pad mount substation takes what works best from both American and European substation designs. With a proprietary high-voltage connection and proven performance across wind and solar projects at 10kV and 35kV, it sets a high-level standard for safety, reliability, and ease of use.
Voltage: 10kV & 35kV
Proprietary HV Connection
Wind & Solar Compatible
Safe & Eco-Friendly
Low Maintenance

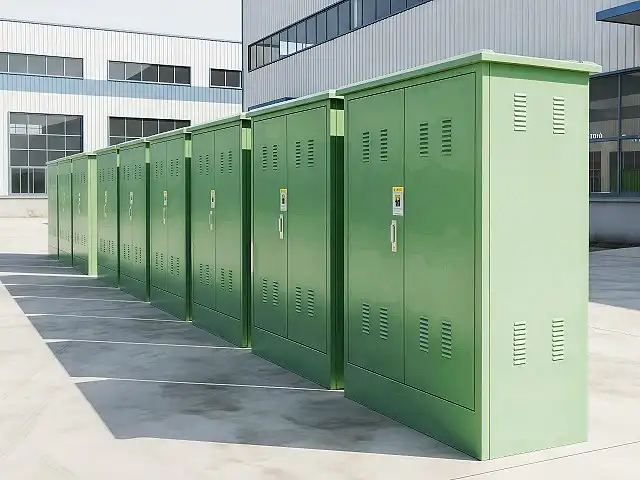

Low-Voltage Integrated Distribution Box
Designed to meet State Grid standards, the JP series brings everything a low-voltage distribution point needs into one compact outdoor enclosure. From metering and protection to reactive power compensation and automatic reclosing — it handles it all, making grid upgrades simpler and more cost-effective.
Rated: 0.4kV and Below
Multi-Function Integrated
Anti-Theft & High Protection
State Grid Compliant
Easy Installation
YBW Series Sample Specifications — Full Data for All Series Available Upon Request
Specifications
| No. | Item | Parameter |
| High voltage unit | Rated frequency (Hz) | 50 |
| Rated voltage (kV) | 7.2, 12 | |
| Rated current (A) | 400, 630 | |
| Transfer current (A) | 1200–3150 | |
| Power frequency withstand voltage (phase-ground, phase-phase / isolating distance) (kV) | 42/48 | |
| Lightning impulse withstand voltage (phase-ground, phase-phase / isolating distance) (kV) | 75/85 | |
| Rated short-circuit breaking current (current-limiting fuse) (kA) | 31.5 | |
| Rated capacity (kVA) | 30–2000 | |
| Tap range | ±2×2.5%, ±5% | |
| Transformer unit | Connecting group (%) | Yyn0, Dyn11 |
| Impedance voltage (%) | 4, 4.5 | |
| Low voltage unit | Rated voltage (V) | 220, 380 |
| Rated current of main circuit (A) | 50–4000 | |
| Branch current (A) | 5–800 | |
| Outer shell | Protection level (conventional product) | IP33D |
| Noise level (dB) | ≤ 50 |
